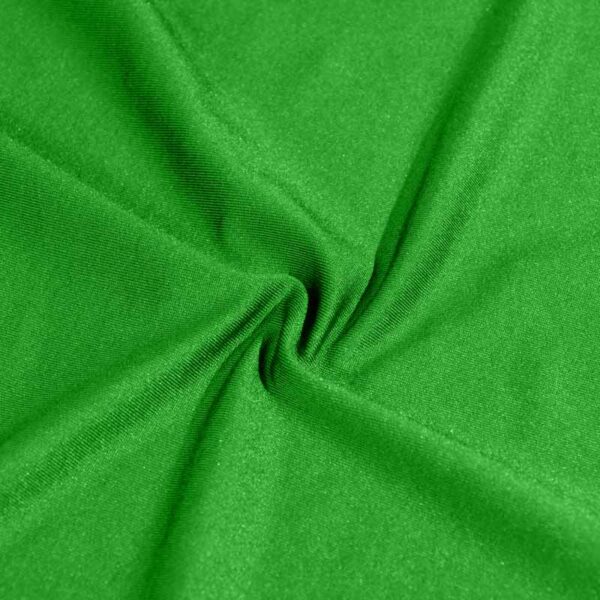

Begoodtex Inherent Fire Resistant Spandex Fabric
| FR Standard | BS 5867 Type C, CA Title 19, CAN/ULC-S109-14, DIN 4102-B1, DIN EN 1021 Teil 1, EN13773 Class 1, GOST R 50810-95, JIS L 1091, NF P92-503-M1, NFPA 701 |
|---|---|
| Width | |
| Weight | 230 g/m² |
| Material | |
| Application |
You can create as many custom tabs as you want and display them conditionally on any product based on your settings.
Enim tortor at auctor urna nunc id. Quis varius quam quisque id diam vel. Non arcu risus quis varius. Quis eleifend quam adipiscing vitae. Habitant morbi tristique senectus et netus et malesuada fames ac. Blandit cursus risus at ultrices mi. Faucibus pulvinar elementum integer enim neque volutpat. Pulvinar sapien et ligula ullamcorper. Feugiat pretium nibh ipsum consequat nisl vel. Netus et malesuada fames ac turpis egestas integer eget. Dolor morbi non arcu risus quis.
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Risus sed vulputate odio ut enim blandit volutpat maecenas volutpat. Vestibulum rhoncus est pellentesque elit ullamcorper dignissim cras tincidunt lobortis. Sit amet luctus venenatis lectus magna. Egestas maecenas pharetra convallis posuere morbi. Id aliquet risus feugiat in ante metus dictum. Tellus molestie nunc non blandit massa. Scelerisque varius morbi enim nunc. Interdum velit euismod in pellentesque massa placerat. Tincidunt eget nullam non nisi est sit. Nec ullamcorper sit amet risus nullam eget felis. Vitae turpis massa sed elementum tempus egestas sed sed. Vulputate eu scelerisque felis imperdiet proin fermentum leo vel.
Sample Information:
- Sample Name: 100% Polyester Inherent Flame Retardant Spandex Fabric
- Color: Black
- Weight: 276 g/m²
- Manufacturer: Shaoxing Begoodtex Co., Ltd.
- Destination Country: USA
Test Requirement:
The test was conducted in accordance with NFPA 701:2015 Standard Test Method 1, which evaluates the flame resistance of textiles and films.
Sample Treatment and Testing Conditions:
- Sample Size: 150mm x 400mm
- Washing Treatment: The sample was subjected to 25 washing cycles based on ISO 6330:2012, washing program No. 6N at 60°C, followed by line drying.
- The sample was dried at 105°C ±3°C for 30 minutes before testing.
Test Data:
Original Condition (Before Washing):
| Specimen No. | Mass Before Test (g) | Mass After Test (g) | Mass Loss (%) | After Flame Time (s) | Burning Time on Floor (s) |
|---|---|---|---|---|---|
| 1 | 17.53 | 16.97 | 3.19 | 0 | 0 |
| 2 | 17.38 | 16.99 | 2.24 | 0 | 0 |
| 3 | 17.50 | 17.21 | 1.66 | 0 | 0 |
| 4 | 17.75 | 16.91 | 4.73 | 0 | 0 |
| 5 | 17.54 | 17.08 | 2.62 | 0 | 0 |
| 6 | 17.45 | 16.84 | 3.50 | 0 | 0 |
| 7 | 17.40 | 17.00 | 2.30 | 0 | 0 |
| 8 | 17.59 | 16.84 | 4.26 | 0 | 0 |
| 9 | 17.77 | 17.08 | 3.88 | 0 | 0 |
| 10 | 17.40 | 16.84 | 3.22 | 0 | 0 |
| Average | 17.53 | 16.98 | 3.16 | 0 | 0 |
- Standard Deviation (SD): 0.97
- Mean + 3SD: 6.07%
After Washing (25 Cycles):
| Specimen No. | Mass Before Test (g) | Mass After Test (g) | Mass Loss (%) | After Flame Time (s) | Burning Time on Floor (s) |
|---|---|---|---|---|---|
| 1 | 17.87 | 17.20 | 3.75 | 0 | 0 |
| 2 | 17.76 | 17.16 | 3.38 | 0 | 0 |
| 3 | 17.62 | 17.08 | 3.06 | 0 | 0 |
| 4 | 17.46 | 16.61 | 4.87 | 0 | 0 |
| 5 | 17.55 | 16.79 | 4.33 | 0 | 0 |
| 6 | 17.47 | 16.84 | 3.61 | 0 | 0 |
| 7 | 17.81 | 17.08 | 4.10 | 0 | 0 |
| 8 | 17.88 | 17.14 | 4.14 | 0 | 0 |
| 9 | 17.54 | 16.80 | 4.22 | 0 | 0 |
| 10 | 17.69 | 16.74 | 5.37 | 0 | 0 |
| Average | 17.67 | 16.94 | 4.08 | 0 | 0 |
- Standard Deviation (SD): 0.69
- Mean + 3SD: 6.15%
Observations:
- Vigorousness of Burning: None observed.
- Molten Dripping: Yes.
- Odor of Smoke: Yes.
Conclusion:
The sample meets the requirements of NFPA 701:2015 Test Method 1. Both in its original condition and after 25 washing cycles, the fabric exhibited no after flame time, and the mass loss was within acceptable limits (below 6.07% before washing, and below 6.15% after washing). The fabric passed the flame resistance test.
